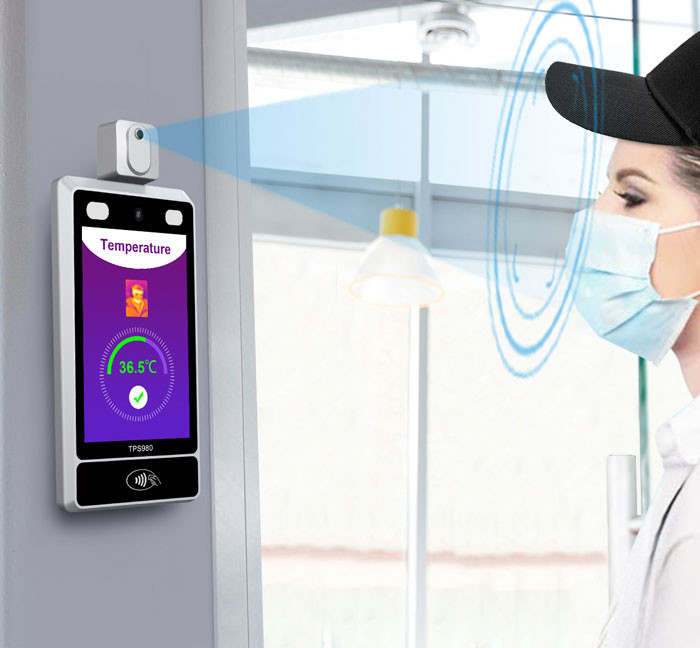

Secure Digital Tempereture Measurement Terminal

TPS980Ts

Secure Digital Tempereture Measurement Terminal

Telpo has developed a single-point temperature measurement solution based on privacy and security considerations.


It can provide contactless temperature detection + personal privacy protection in multi-scene.

"Touchless", "Rapid Response", "Privacy Protection",

"Card Access", "Flexible Deployment"


Secure Digital Tempereture Measurement Terminal


Main Features

1. Precision Touchless Checking

Infrared thermal imaging body temperature measurement.


Thermometry distance: 0.5-0.7m

Measurement range 30-45 (℃)

Error range: ± 0.3 ℃


2. Voice prompt High-Temperature Warning

Real-time warning of high temperature and can support multi-language broadcast.


3. Visualized Body Temperature Measurement

The 8-inch screen clearly shows the personal temperature

Multi-language version meets your needs


4. Card Access Control

Contactless card reading and automatic entry management


5. Flexible Deployment and Easy Installation

A variety of brackets meet the needs of changing scenarios.


6. Upload Temperature Information

Intelligent attendance and access control management,

abnormal temperature reporting, devices management, and data statistics.


7. Rich Ports

External ports enable the terminal to have access

to connect other peripherals and expand its application.


8.Applications

Subway / Enterprise / School and / Exhibition

Supermarket/ Restaurant / Hospital / Barber Shop



Specification

OSAndroid 7.1
ProcessorDual-Core 1.8GHz+Quad-Core 1.4GHz
Memory4GBDDR, 16GB eMMC
Display8-inch, 800*1280
Keys1 Reset Key
Fill LightWhite LED
Contactless Card Reader (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
SIM Slots (Optional)1 SIM
CommunicationsEthernet/WiFi/Bluetooth
LTE (Optional)
Temperature MeasurementDistance : 50 ~ 70cm
Accuracy : ± 0.3 ℃
Peripheral Ports1 DC Port, 1 RJ45, 1 micro USB,  1 Wiegand, 1 RS485
AudioDigital Audio Speaker, Microphone
Power Supply12V/2A,POE(Optional)
Bracket   (Optional)Wall Mount Bracket, Turnstile   Mount Bracket
Dimensions (mm)323(L)*135 (W)*30 (H)
MDM   (Optional)Mobile Device Management
CertificationCE
