5.5 inch Touch Screen Android BIS PCI EFT POS Machine

TPS900

5.5 inch Touch Screen Android BIS PCI EFT POS Machine

5.5 inch Touch Screen Android BIS PCI EFT POS Machine

TPS900 EFT-POS, Comprehensively satisfy your requirement


Based on the Android operating platform, TPS900 supports Android 5.1 or above version.

It is equipped with various financial certifications such as EMV & PCI,

guaranteeing normal use of credit cards in different fields.


5.5 inch Touch Screen Android BIS PCI EFT POS Machine


Good performance

Android system + Qualcomm chip enable high-intensity working.


5.5-inch Screen

Medium size, convenient carrying.

The industrial-grade screen enables strong sustainable performance

and excellent sunlight screen readability.

5.5 inch Touch Screen Android BIS PCI EFT POS Machine


Multi-payment methods

Supporting Magnetic stripe cards, Credit card Chip card, Contactless/NFC, etc.



Dual Cameras

Front and back dual camera.

Quick to capture QR-code,support Alipay, Wechat Pay, Gcash, etc.

5.5 inch Touch Screen Android BIS PCI EFT POS Machine

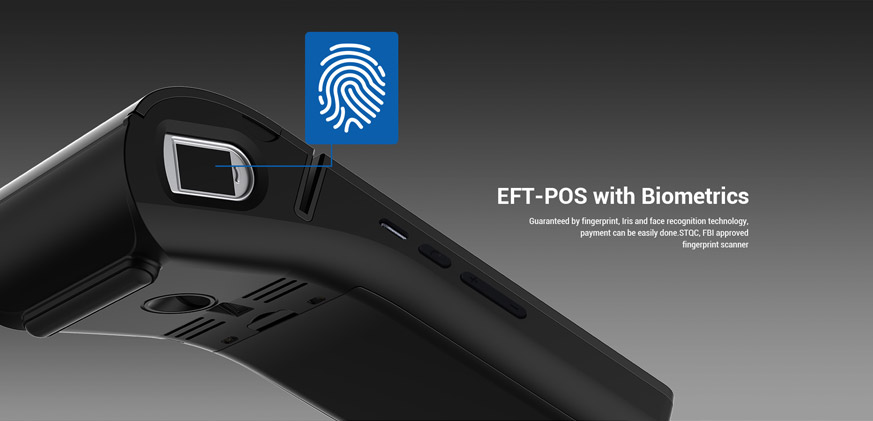

The first EFT-POS machine with biometrics

Guaranteed by fingerprint, iris and face recognition technology, payment can be easily done.


5.5 inch Touch Screen Android BIS PCI EFT POS Machine

Complete certification can eliminate the verified time and equipment cost.

( EMV Level 1& Level 2, PCI, PayPass, PayWave, TQM, Rupay, MIR, ANATEL, BIS, CE, FCC, RoHS, etc.)


5.5 inch Touch Screen Android BIS PCI EFT POS Machine

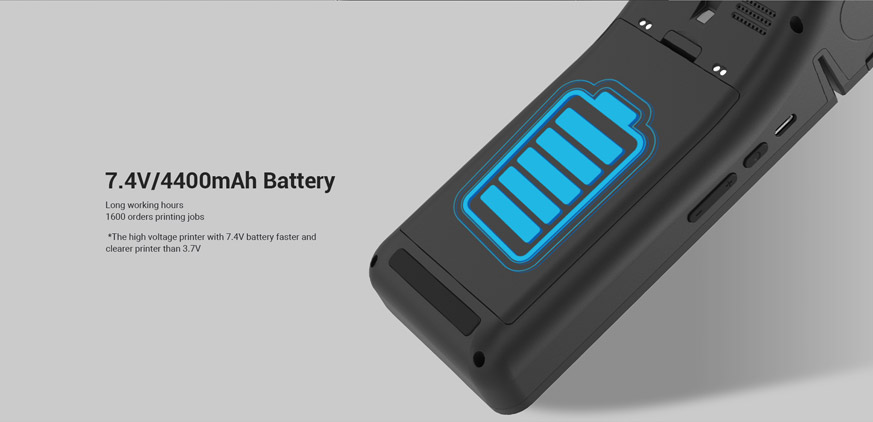

Small Size, Big Capacity


An expanded large battery makes a longer battery life.

Consistently work for 24h, support screen standby above 3 days,

operate 6000 credit-card consumption and print 1800 times.

5.5 inch Touch Screen Android BIS PCI EFT POS Machine


The charging base allows the machine to charge and rest in time.

Clean up the mess of charging cables in the countertop.


5.5 inch Touch Screen Android BIS PCI EFT POS Machine


5.5 inch Touch Screen Android BIS PCI EFT POS Machine

Additional Equipment



1. Silicone Case Optional.

The rubber case makes the machine screen more sturdy,

the TPS900 machine is durable and more resistant to falling.

The rubber case is very soft and easy to install.


2. Portable backpack

Mobile payments can be made immediately wherever you go.

Portable backpacks are ready for frequent mobile fee collections

and have been used by restaurants, hotels, parking lots, etc.

5.5 inch Touch Screen Android BIS PCI EFT POS Machine

Application

EFT-POS TPS900 has been applied for retail shop, supermarket,

cash register, account authentication, top-up, lottery, voting validator, transport validator, etc.


Specification

OSAndroid 5.1 or above
ProcessorQuad-Core 1.1GHz or above
Memory1GB DDR, 8GB eMMC, Ext. TF card slot
2GB DDR, 16GB eMMC (Optional)
Display5.5-inch, 720*1280
KeypadSoftkeys
Thermal PrinterPaper width: 58mm, Φ35mm or above
Magnetic Card ReaderTrack 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812
Smart Card ReaderISO7816
Contactless Card Reader   (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
Fingerprint Scanner (Optional)ANSI/INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4
FBI, STQC certificate
Iris (Optional)STQC certificate
CameraRear: 5M Pixel, autofocus (Barcode software decoding)
Front: 2M Pixel, autofocus (Optional)
SAM SlotsISO7816, 1 or 2
SIM   Slots1 SIM
    2 SIMs (Optional)
CommunicationsLTE/WCDMA/GPRS/WiFi/Bluetooth
GPS (Optional)Built-in
Peripheral Ports1 Micro USB, 1 USB (Type-C), 1 DC Charge
AudioDigital Audio Speaker
Power Supply5V/2A
Battery7.4V/2200mAh, Li-ion
7.4V/4400mAh, Li-ion (Optional)
7.4V/2500mAh, Li-ion (Optional)
7.4V/5000mAh, Li-ion (Optional)
Docking Station (Optional)Charging
Dimensions (mm)205 (L)*82 (W)*55 (H)
EnvironmentalOperating temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
CertificationEMV L1&L2, PCI, EMV Contactless L1, Paywave, PayPass, MIR, Rupay, TQM, CE, FCC, RoHS, BIS, Anatel
MDM (Optional)Mobile Device Management
Reserve the right to change the parameters   without prior notice
