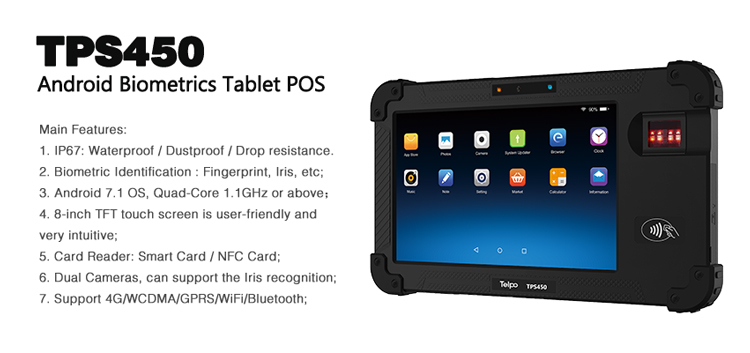

Android Biometric Tablet POS

TPS450 is an ingress protection tablet which compiles with IP67(waterproof, dustproof and shockproof), featuring biometric, Iris, 1D/2D barcode scanner, NFC to provide multiple functions for various customers applications such as ID information collection, logistics, voting.

Android Biometric Tablet POS

TPS450 is a multi-functional biometric smart terminal that supports iris, facial recognition, fingerprint recognition, etc.

In addition to fingerprints, it also supports NFC Reader, Barcode/ QR-code recognition.

Application

TPS450 can be used in office or warehouse access control system, police mobile law enforcement, examination system examinee registration and identification, logistics system mobile office, restaurant self-service meal ordering system, etc.

Ingress Protection / Logistics / Member Management / Biometric Identification / Warehouse Control / Voting…

Android Biometric Tablet POS

Specification

Android Biometric Tablet POS

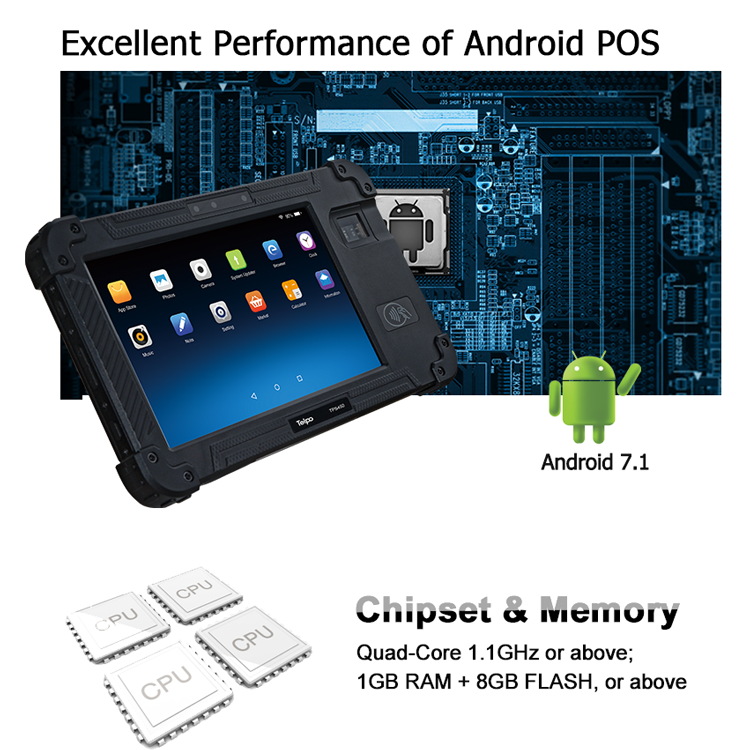

Processor	A7, Quad-Core 1.1GHz or above
Memory	● 1GB RAM, 8GB FLASH, Ext. TF(micro SD) card ○ 2GB RAM, 16GB FLASH
OS	Android 7.1
Display	8", TFT 1280*800
Smart card reader	○ ISO 7816
Contactless card reader	○ ISO14443 Type A/B, Mifare®, ISO18092 compliant
Built-in Fingerprint Module	○ ANSI/INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4
Front Camera	○ 2MP, fixed focus ○ Can be changed to Iris scanner
Rear Camera	● 8MP ○5MP, autofocus (Barcode software decoding) ○ Can be changed to Iris scanner
SIM Slots	● 2 SIMs ○ 1 SIM+1 SAM
● Standard ○ Optional	Reserve the right to change the parameters without prior notice.

Communications	● TDD-LTE/FDD-LTE/WCDMA/GPRS/WiFi/Bluetooth ○ WCDMA/GPRS/WiFi/Bluetooth
GPS	○
Peripheral Ports	● 1 Micro USB, 1 DC Input
Audio	● Digital audio speaker, microphone
Power Supply	Input:100-240V AC; Output:5V DC, 2A
Battery	● 3.8V/8540mAh, Lithium Polymer rechargeable battery
Dimensions(mm)	262(L)×160(W)×30(H)
Certification	CE
Ingress Protection	IP67
MDM (Mobile Device Management)	○

TPS450
