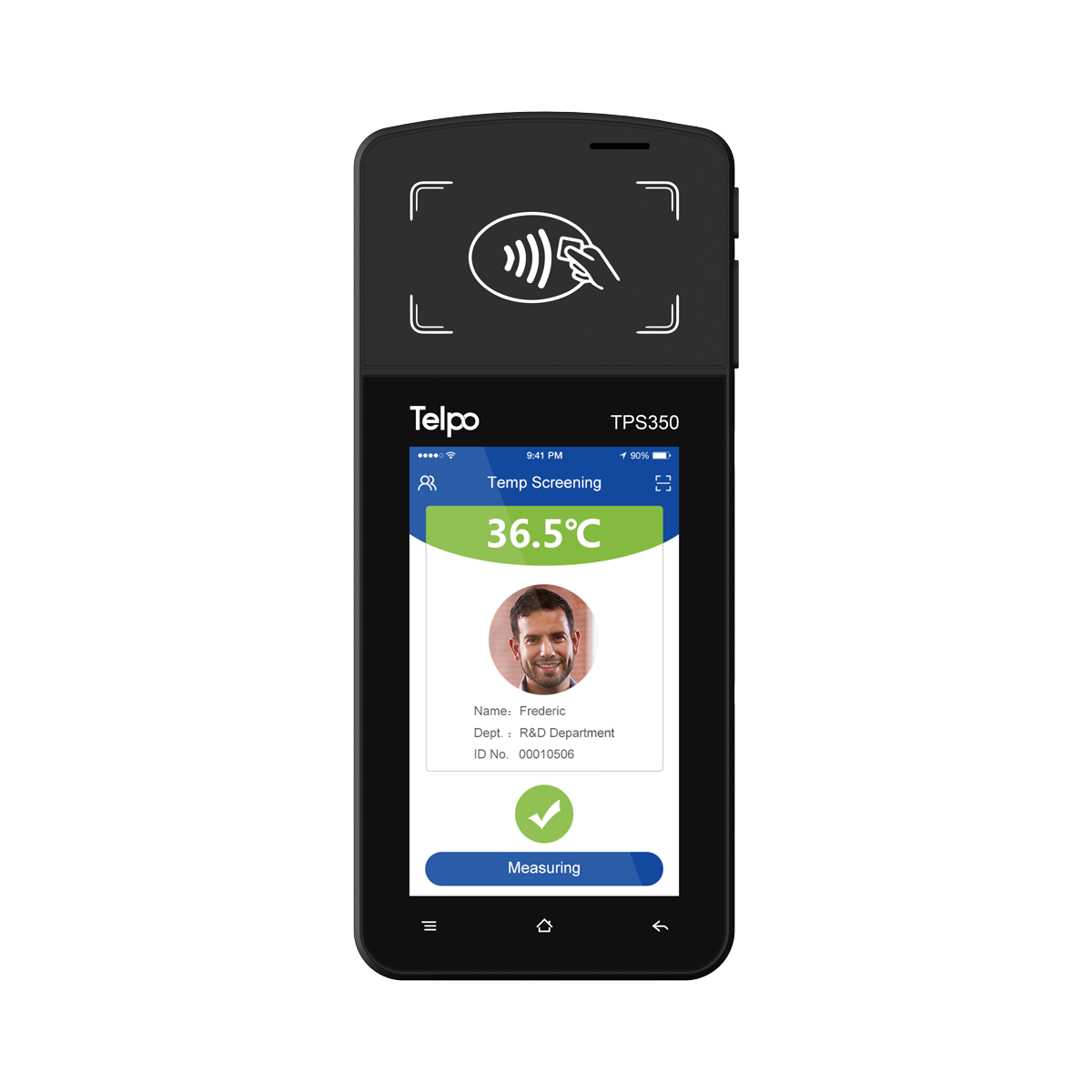

Mobile Temperature Measurement Terminal


Mobile Temperature Measurement Terminal

As pandemic is gradually under control, all walks of life are resuming work in a safe and orderly manner. Telpo uses its mature technology and combines a contactless high-precision algorithm with infrared thermography to develop a mobile temperature screening solution. It can realize contactless identification and temperature detection, escorting safe and orderly work resumption in enterprises, schools, restaurants, parks, hotels, etc.


Telpo mobile temperature screening terminal adopts "touch-free temperature measurement + infrared thermography + contactless radio frequency identification (RFID)" and other technologies, realizing rapidly accurate temperature detection, identity identification, barcode scanning verification, photographed, data tracking, report generation, platform management and so on functions.

Mobile Temperature Measurement Terminal

Main Features

1.Non-contact Accurate Temperature Measurement

Equipped with international leading Melexis temperature detection chip and blackbody calibration method,

it can make safe temperature detection within 10 cm distance and control temperature error within ± 0.3℃.

Mobile Temperature Measurement Terminal

2. Automatically Collect Personnel Information

Telpo mobile temperature measuring device adopts various methods like detecting wrist temperature,

identifying employee card/ ID card, scanning health code and visitor QR code, and so on.

So it achieves simultaneously identification and temperature detection.

Mobile Temperature Measurement Terminal

3. Streamline Processes and Reduce Cross-infection

Compared with Traditional Solution, Telpo Temperature Solution can be uploaded and downloaded the data

to the cloud with one key to achieving paperless non-contact data management and reduce cross-infection.

①Temperature Detection+ Employee/IC Card Verification

② Temperature Detection + Barcode/QR code Scanning Verification

③Temperature Detection + ID card Verification


OSAndroid 7.1 or above
ProcessorQuad-Core 1.1GHz or above
Memory1GB   DDR, 8GB eMMC, Ext. TF card slot
2GB DDR, 16GB eMMC (Optional)
Display4-inch, 480*800
Smart Card Reader (Optional)ISO7816
Contactless Card Reader (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
Temperature MeasurementMeasurement   method: Non-contact
Measurement distance: 0 ~ 6cm
Measurement time: <1s
Measurement range: 32 ~ 42.9 ℃
Measurement accuracy: ± 0.4 ℃
Camera (Optional)5MP,   autofocus
Barcode software decoding (Optional)
SIM Slots1 SIM
2 SIMs (Optional)
1 SIM+1 SAM (Optional)
GPS   (Optional)Built-in
Peripheral Ports1 Micro USB, 1 DC Charge, 1 Audio   Jack
AudioDigital   Audio Speaker, Microphone
Power Supply5V/2A
Battery3.8V/3000mAh,   Li-ion
Dimensions (mm)168 (L)*75 (W)*24 (H)
EnvironmentalOperating temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
MDM (Optional)Mobile Device Management
CertificationCE, RoHS
