Place of Origin: foshan, China
Model Number: TPA230
OEM/ODM Availability: Yes
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Color: black, white, or custom
Package: 1pcs/carton, with accessories
Optional: MDM system

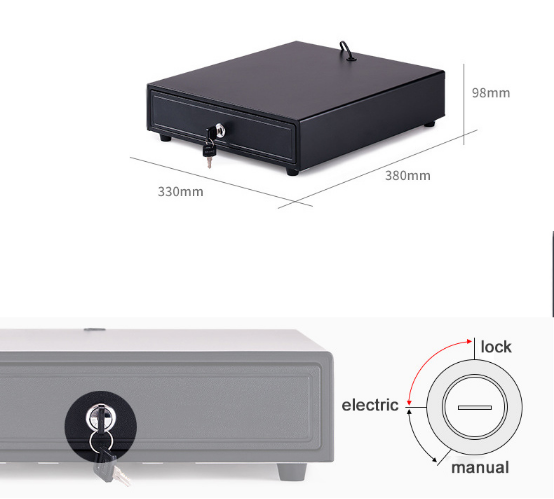

TPA230 is POS cash drawer includes 2 media slots and can be unlocked manually by the hidden emergent release lever. Drawer is classic steel constructed with heavy-duty ball bearing rollers that can hold up to 30 Kg.
Drawer case: 4 bill case, 5 coin case, 2 media slots
Drawer interface: Standard RJ12 connection
Key position: 3 positions (locked, unlocked, electronic opening allowed)
Operating voltage: 12 VDC + or - 10% pulse excitation
Drawer load: 66 lbs. (max)
Dimensions: 13" x 13" x 3 1/2"
Requirements: Connectivity interface: Standard RJ12 (6 pin 6C)
Removable tray and coin case
Stainless steel, 2 media slots for large bills/checks
Adjustable dividers, 3 position key lock
Ball bearing rollers, emergency release lever
Best choice for quality, dependability, and durability
|Bill Slot||4, with metal wire grips|
|Drawer Lock||Locked open/closed, electronically driven|
