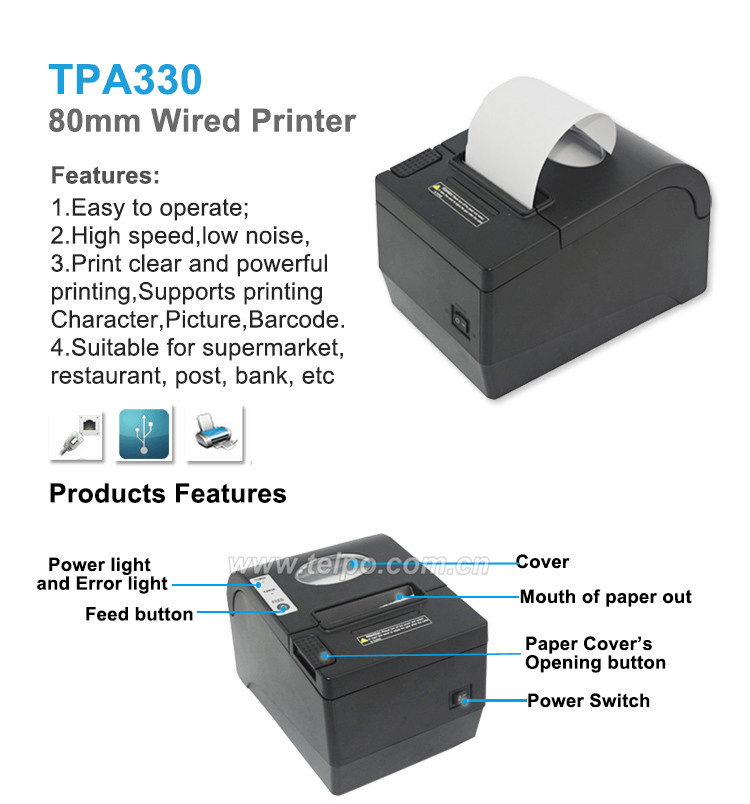

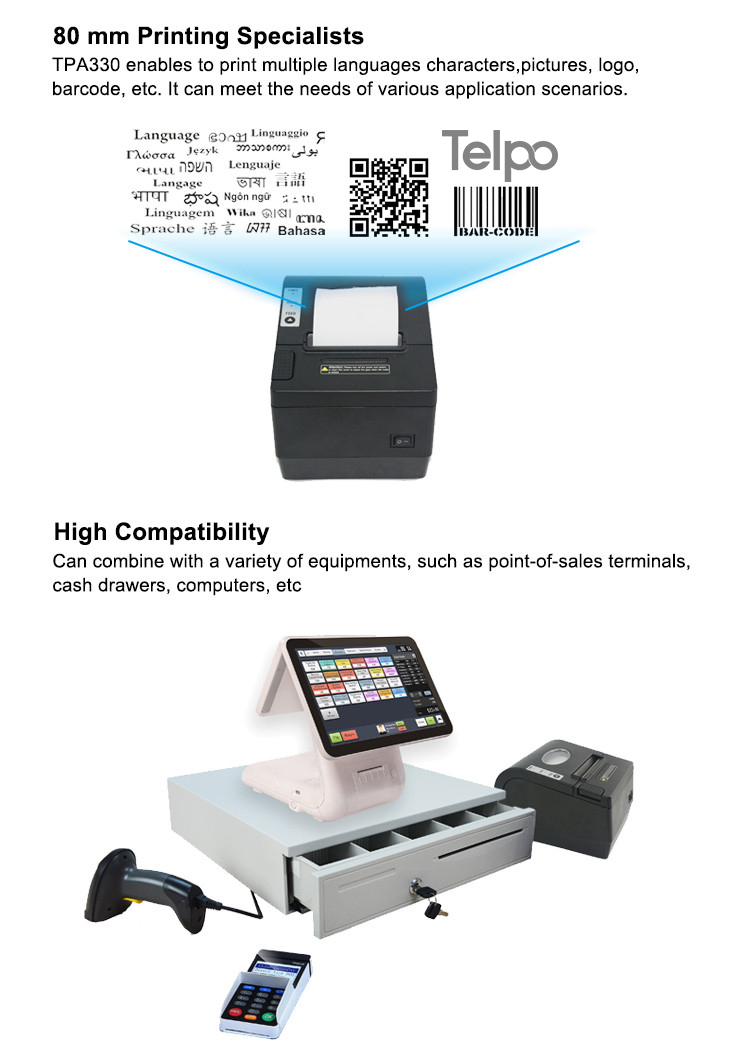

TPA330 is a high-speed thermal printer. It prints quietly and environmental-friendly.It enables to print multi-languages characters, pictures,logo,barcode,etc. TPA330 can meet the needs of various applications scenarios.
Application
| Printing Performance | Order Set | ESC/POS compatible instruction |
| Print Way | Thermal line printing | |
| Effective Print Width | 72mm | |
| Print Speed | Max.250mm/s | |
| Character/Picture/Barcode | Character | English, Chinese, Korea, Japanese, etc. |
| Graph | Support 64k bitmap | |
| Barcode | Support barcode printing with Code39, Code28, QRCode, etc. | |
| Detection Mode | Black mark detection | Support |
| Network status detection | Support | |
| Paper cutter status detection | Support | |
| Lack of paper detection | Support | |

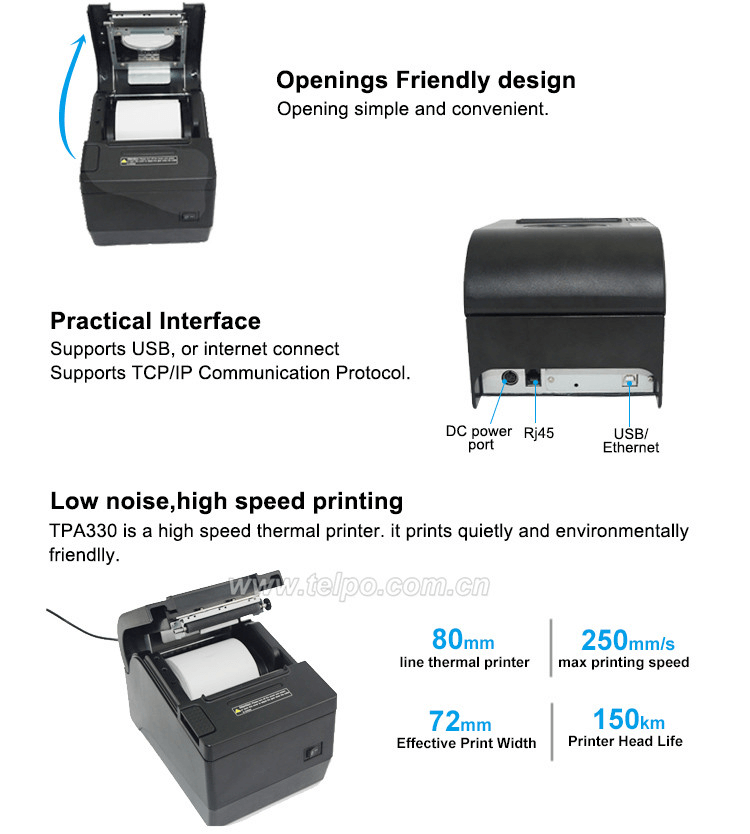

| Interface Parameters | Interface | Only USB, or only ethernet |
| Power Supply | DC power | 24V, 2.5A |
| Reliability | Communication Protocol | TCP/IP |
| Printing Paper | Storage | Data 1MB, SD RAM 8MB, NV bitmap 256KB |
| Printing Paper Width | 79.5±0.5mm | |
| Paper Thickness | 0.06～0.08 mm | |
| Scroll Size | Max. 100mm | |
| Cutting Paper Way | Full cut/half cut | |
| Physical Property | Color | Black |
| Operating Temperature/Humidity | 5～40℃/10～80％（RH） | |
| Storage Temperature/Humidity | -20～60℃/10～90％（RH） |

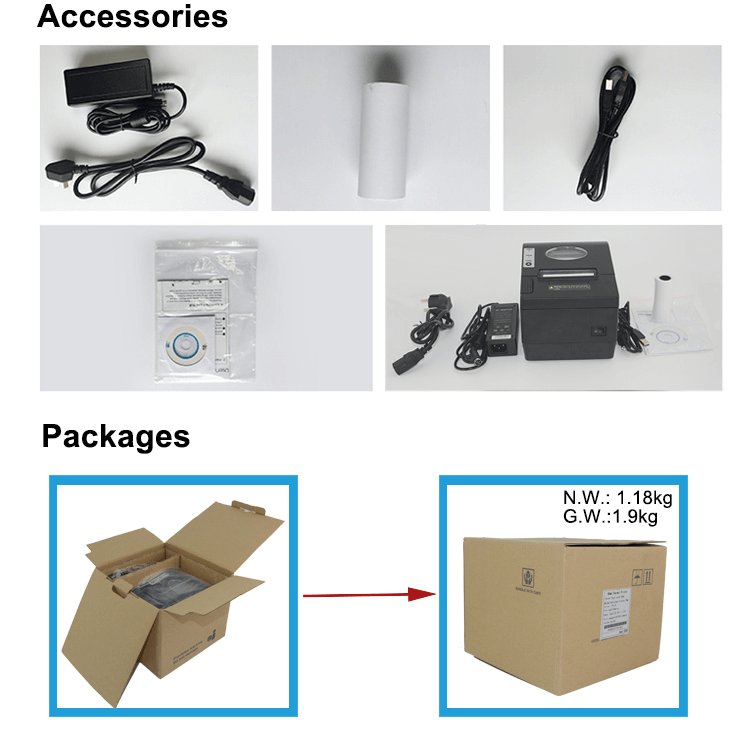

Package
