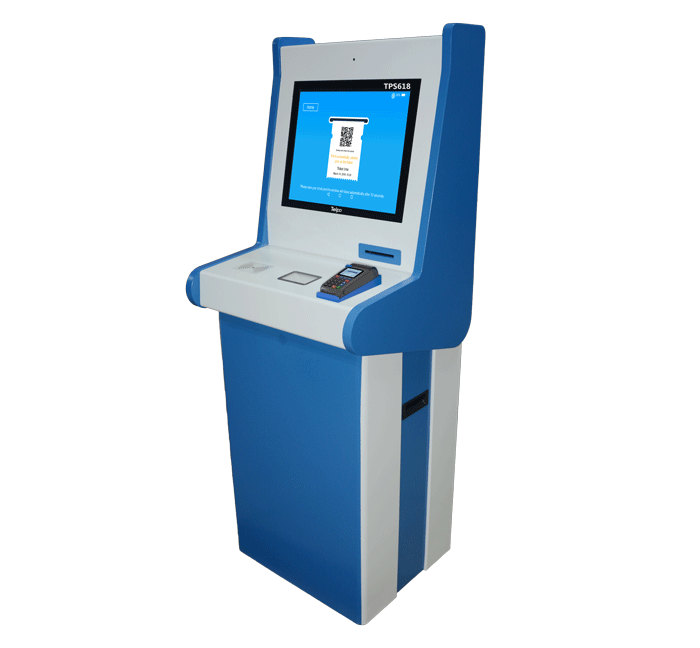

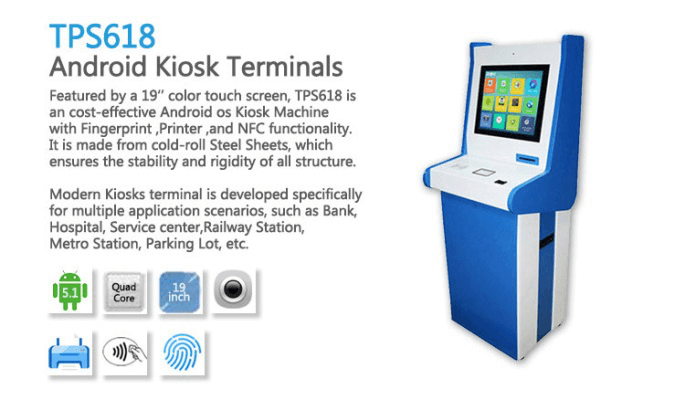

Featured by a 19-inch color touch screen, TPS618 is a cost-effective Kiosk Machine with a fingerprint, printer, and NFC functionality. It is made from cold-roll Steel Sheets, which ensures the stability and rigidity of all structure.
Modern Kiosks terminal is developed specifically for multiple application scenarios, such as Bank, Hospital, Service center, Railway Station, Metro Station, Parking Lot, etc.
A high-speed thermal printer was built in self-order machine TPS618 for printing receipts.
Wi-Fi and Bluetooth are supported in communication
TPS618 can be equipped with face recognition camera and the infrared sensor for more extended functions.
OTHER APPLICATIONS INCLUDE:
· Retail Distribution Center
· Retail Store/ Supermarket
· Fast Food Restaurant
· Self-Service Machines
· General Checkout Stations
· ATM Machines
· In-store Kiosks
· Hotel / Concierge Desk
· Thin-client Application
· Home Automation
· Multimedia Entertainment
Details:
The TPS618 has good scalability and compatibility and can be used as self-check kiosk/ self Top up machine / Queue Machine / Railway Ticketing kiosk, etc.
OS | Android 5.1 |
CPU | Quad-Core 1.8GHz |
Memory | 2GB RAM, 8GB FLASH, Ext. TF(micro SD) card |
Display | 19", 5 points touch screen |
Thermal graphics printer | ○ Speed: 18 lines/sec; Paper width: 80mm |
Contactless card reader | ○ ISO14443 Type A/B, Mifare® |
Camera | ● 5M Pixel, fixed focus(Barcode soft-decoding) ○ Front camera |
Fingerprint Scanner | ○Support |
Communications | ○WCDMA/GSM/WIFI/Bluetooth/4G |
Peripheral Ports | ●1 micro USB, 1 RJ45 |
Loud Speaker | ● |
Power Supply | Input:100-240VAC, 50Hz/60Hz |
Others | 1 Power Key |
Dimensions(mm) | 582(L)×528(W)×1610(H) |
MDM (Mobile Device Management) | ○ |
● Standard ○ Optional | Reserve the right to change the parameters without prior notice. |
