7-inch Android Desktop Tablet POS

TPS570

7-inch Android Desktop Tablet POS

7-inch Android Desktop Tablet POS

Telpo TPS570

Desktop Tablet POS

Telpo TPS570 is a simple but elegant smart Pos terminal with a high-speed printer and multi-support NFC reader, It applied in many fields, like the lottery, loyalty program, and food order. Moreover, it supports many kinds of communication way as WIFI, Ethernet, and WCDMA/GSM.


7-inch Android Desktop Tablet POS

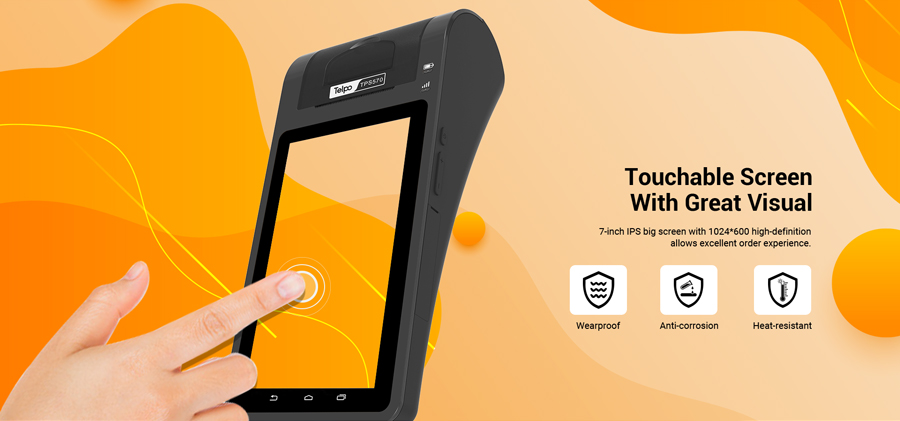

Touch Screen With Great Visual

7-inch IPS big screen, with 1024*600 high-definition, great visual angle(178°). When it’s used as an ordering machine, it can show more dishes in the menu for customers to choose. G+G high-reliability touch screen. Also, it is press-resisting, and drop-resisting, no harm if fall from 1-meter height, due to great structure design.



7-inch Android Desktop Tablet POS

Contactless Card Reader

Multi-support NFC reader, supporting ISO 14443A/B, ISO 18092 standard, fully compatible with a universal used contactless card, good for the loyalty program.



Equipped with Android 6.0 OS, Quad-Core 1.3GHz processor, making it easy to run all kinds of custom applications (up to 10 applications).


7-inch Android Desktop Tablet POS

Thermal Printer

Internal 58mm width thermal high-speed printer, with lower noise and power dissipation, printing speed up to 70mm/s, printer engine life: 50KM, paper diameter, 50mm. could fit 5-year using (calculated by the status that one shop print 200 receipts/day, one receipt is 15 cm long).


7-inch Android Desktop Tablet POS

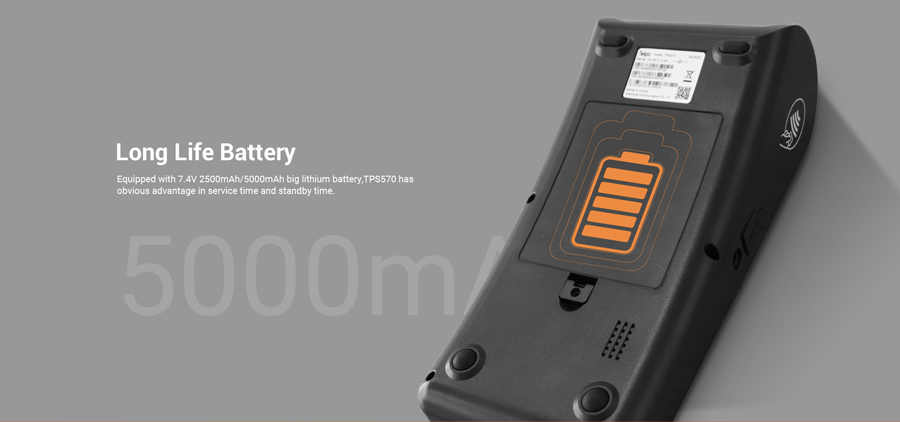

Long Life Battery

Equipped with 7.4V 2500mAh/5000mAh high-capacity lithium battery, TPS570 have the obvious advantage in using time and standby time. Also, you can put the fiscal module, in this big battery cabin, makes it easier to maintain for an engineer.


7-inch Android Desktop Tablet POS

Communication

Supports 2G/3G frequency, WIFI, Bluetooth, Ethernet, adaptive with a different kind of web entry. Also, it could provide USB host ports, accessible with many peripheral devices.




7-inch Android Desktop Tablet POS

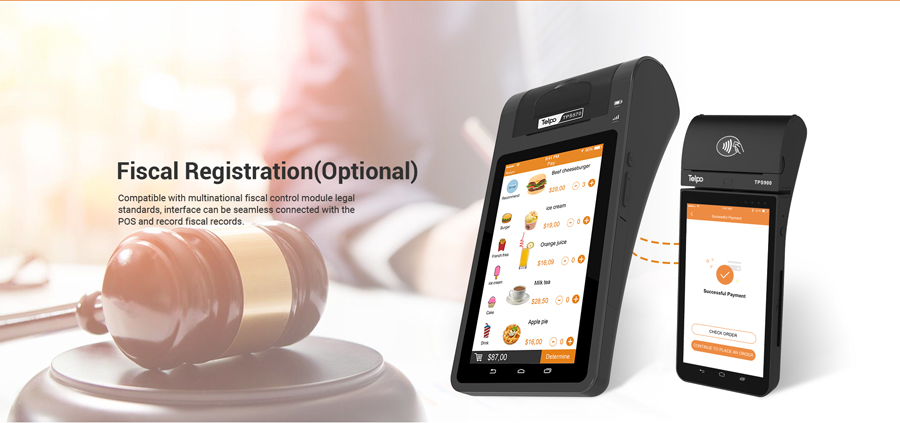

Fiscal Registration

Compatible with multinational fiscal control module legal standards, the interface can be seamlessly connected with the POS and record fiscal records.


Telpo could provide technical support, SDK software developing the package, and fast ODM designing and experienced after-sale service.




7-inch Android Desktop Tablet POS

Application


TPS570 is suitable for small and medium-sized restaurants, fiscal accounting, ordering, E-tickets, convenience stores, fruit stores, gambling centers, membership management, and so on.



Specification

ProcessorQuad-Core   1.3GHz
Memory1GB   RAM, 8GB FLASH, Ext.  TF(micro SD) card   slot
OSAndroid   7.0
Display7",   TFT 600*1024
Keypad1   Power key
Thermal graphics printerSpeed:   18 lines/sec; Paper width: 58mm;  Φ50mm
Contactless card reader ISO14443 Type A/B, ISO18092
SIM Slots 1    2
Standard   OptionalReserve the right to change the parameters without prior notice.
Communications    GPRS/WCDMA/Ethernet/WiFi/ Bluetooth

4G/GPS
Peripheral Ports2   USB Host, 1 micro USB,1 RJ45
AudioDigital   audio speaker
Power SupplyInput:100-240VAC;output:9VDC,   2.5A
Battery 7.4V, 2500mAh, Li-on
5000mAh
Dimensions(mm)255.5*121*79mm
CertificationCE
