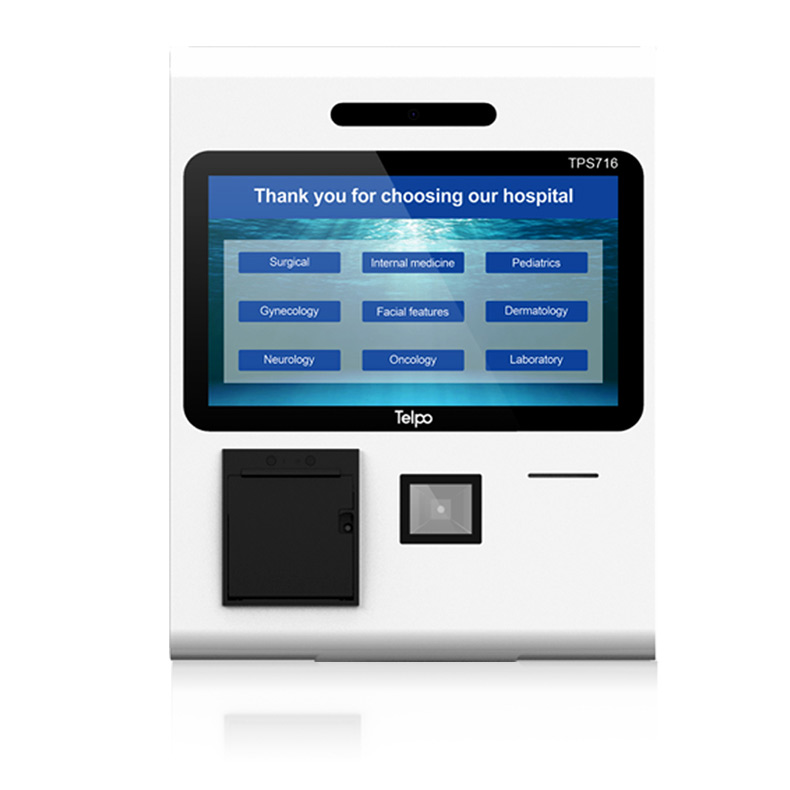

Customer Appointment Queue Management Kiosk

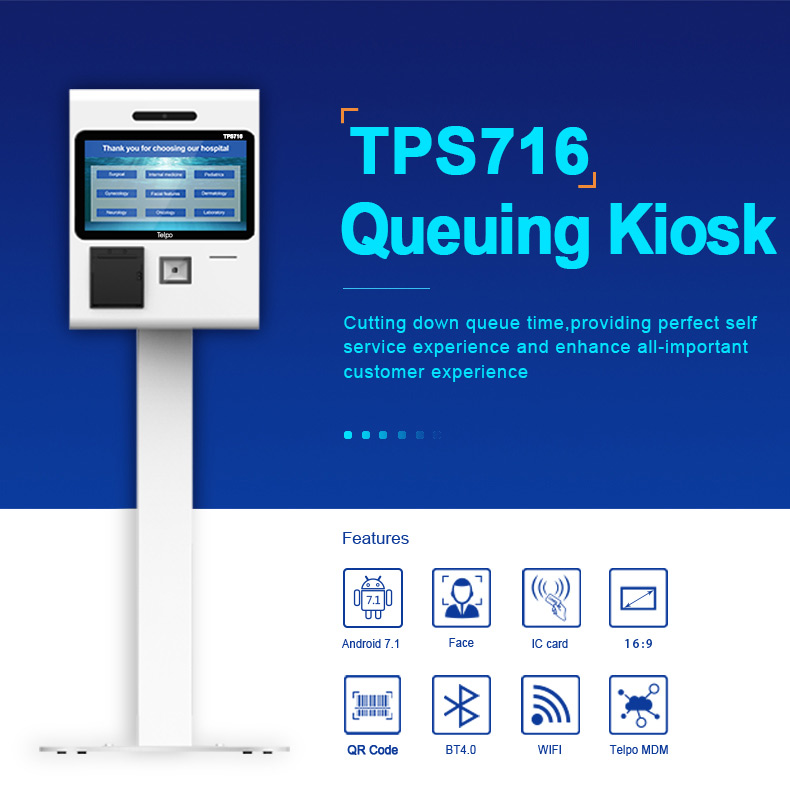

TPS716，Queuing Kiosk

Cutting down queue time, providing the perfect self-service experience

and enhance all-important customer experience

Customer Appointment Queue Management Kiosk

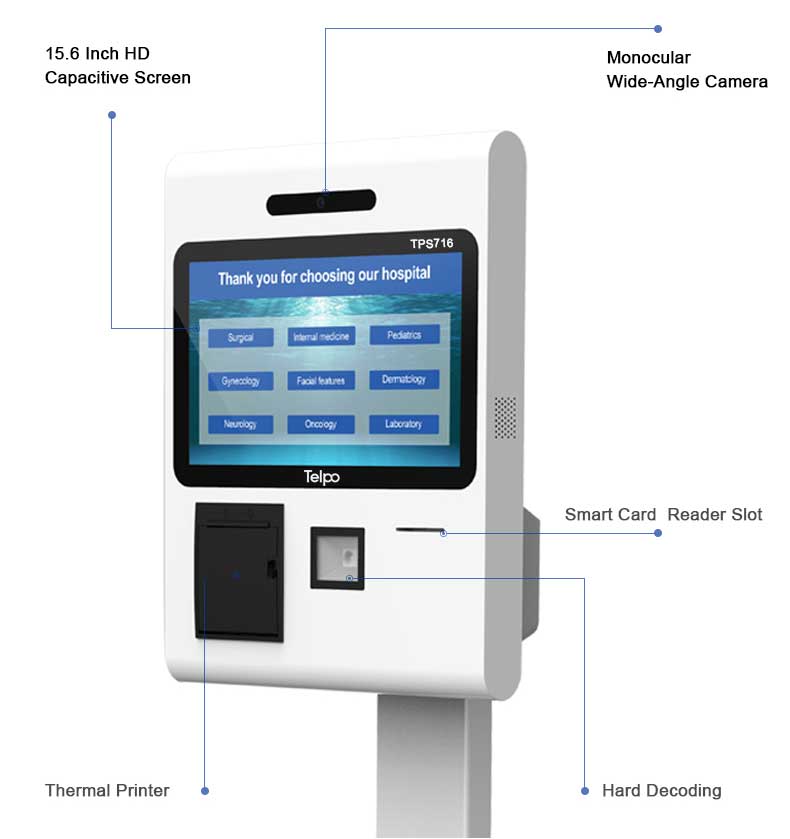

Monocular Wide-Angle Camera

The camera can swivel 0~74°

Quickly identify members/visitors face information

binocular wide-angle camera (optional)

Customer Appointment Queue Management Kiosk

Specification

OS	Android 6.0 or Andriod 7.1 (Optional)
CPU	Octa-Core 1.5GHz
Memory	1GB RAM, 8GB eMMc 2GB RAM，8GB eMMc (Optional)

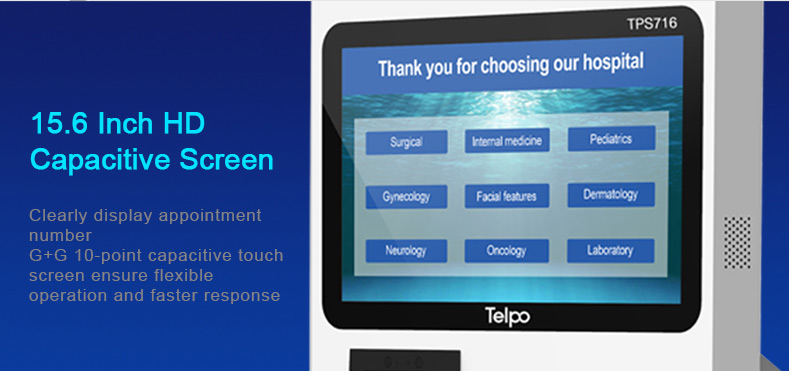

Display	Main LCD: 15.6",1920*1080 G+G touch screen

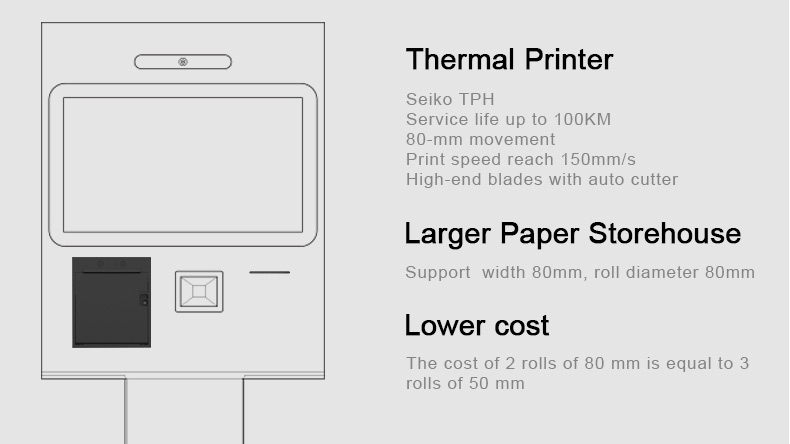

Printer	Paper width 80mm, Φ50mm, With Auto-cutter Paper width 58mm, Φ50mm
Smart card reader (Optional)	ISO7816
QR Code Reader	1D/2D code support

Camera	Monocular Camera Binocular Camera (Optional)

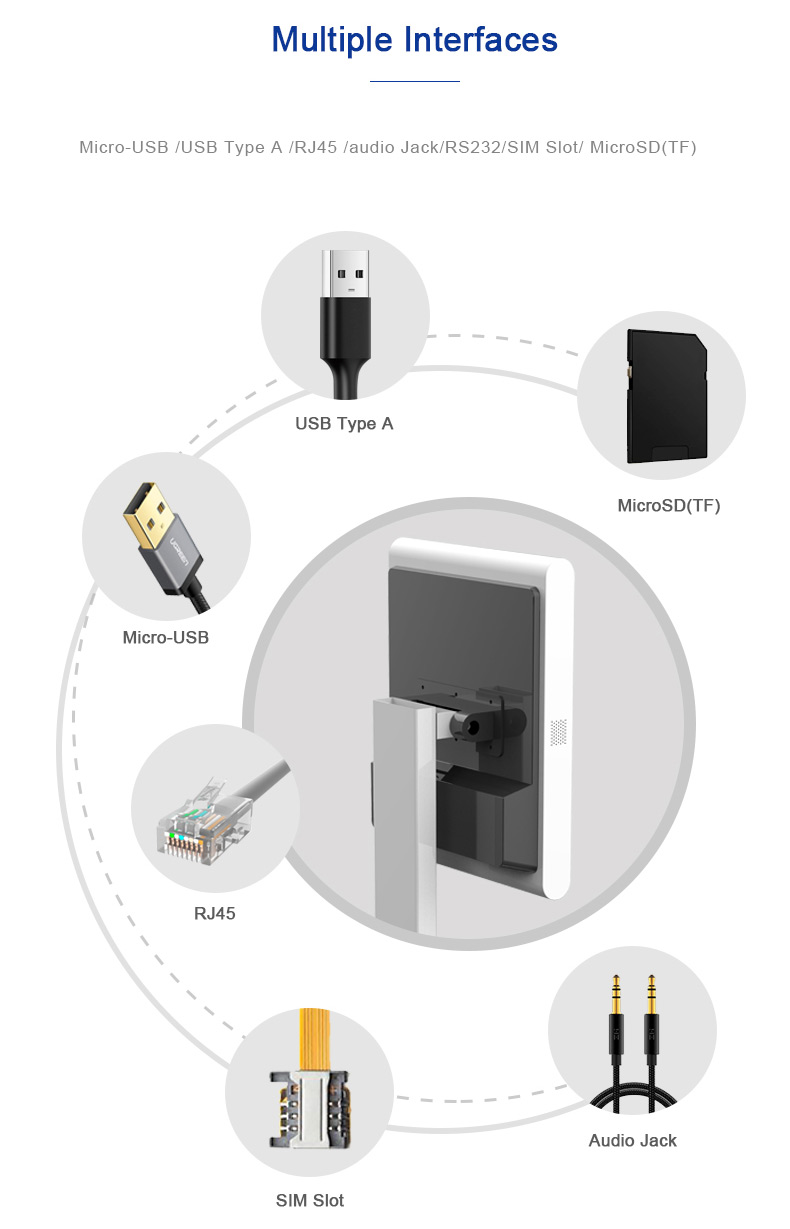

Communications	WiFi 802.11b/g/n, Ethernet Bluetooth 4.0
Power Supply	Input: 100-240VAC,50-60 GHz Output: 24VDC/2A
Audio	Output--Digital audio speaker

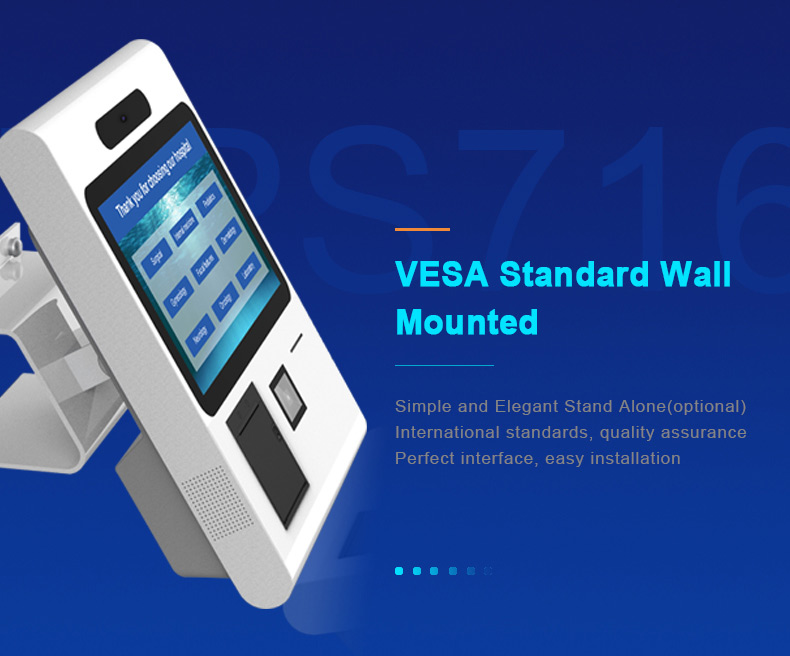

Others	Floor stand (Optional) Wall mounting bracket
MDM (Mobile Device Management)	Support

K16
