8-inch 4G Android Face Recognition Access Control Terminal

TPS980

8-inch 4G Android Face Recognition Access Control Terminal

8-inch IP54 Android Face Recognition Access Control Terminal

Product Description


TPS980 is an Android Biometric Face recognition Terminal with an infrared sensor and face recognition camera. Telpo TPS980 front camera supports High dynamic range (HDR). Equipped with the 8-inch touch screen, 1280*800, TPS980 shows clear portraits even in dark.

In addition, Telpo provides a face recognition SDK for secondary development, making it easier for partners who are professional at face recognition algorithm and Face search APP design. Telpo's self-developed face recognition platform (Telpo Face ) is also available for partners who lack good enough development capabilities. Please contact us for details.


8-inch IP54 Android Face Recognition Access Control Terminal

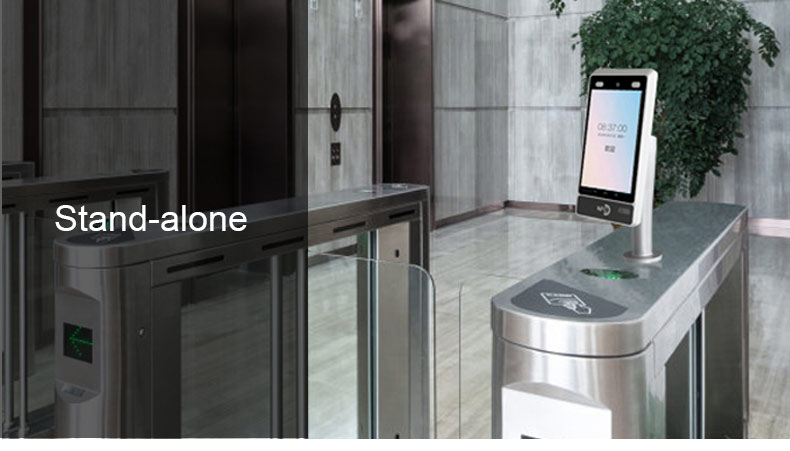

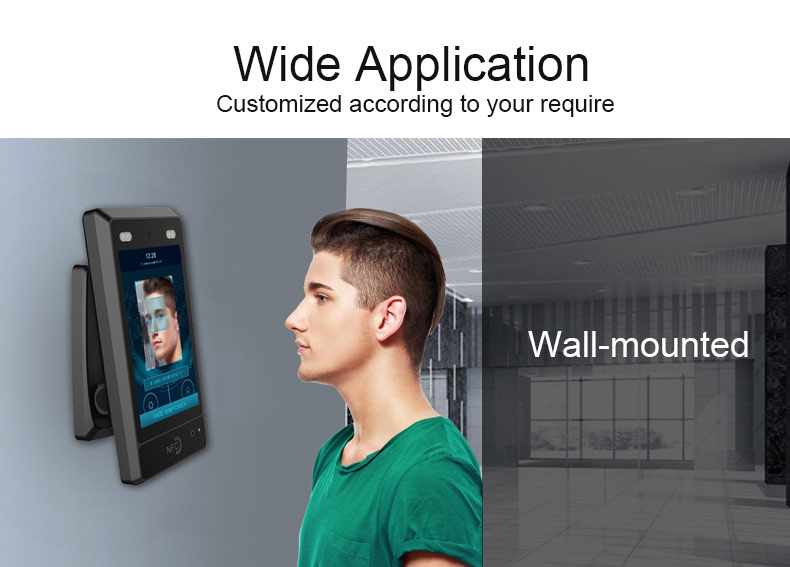

TPS980 has two types of options, one is a standing type and the other is wall-mounted, which may be selected according to actual needs. Both use the aluminum shell and the base, both gorgeous and solid.


8-inch IP54 Android Face Recognition Access Control Terminal


High-Performance
Equipped with Android 5.1 os or above, Quad-core 1.8Ghz,  Telpo TPS980 can accurately and efficiently run the complicated applications without waiting.

Telpo TPS980 Support the RK3288 scheme and RK3399 scheme selection.


8-inch IP54 Android Face Recognition Access Control Terminal


Infrared Sensor and Face Recognition

The TPS980's infrared sensor senses the human face within one meter and automatically turns on reading face information, which is efficient and accurate, enabling a hands-free, door unlock experience with waiting.

Infrared sensors and two LED lights can sense the human face at night and automatically turn on the face recognition system.


8-inch IP54 Android Face Recognition Access Control Terminal

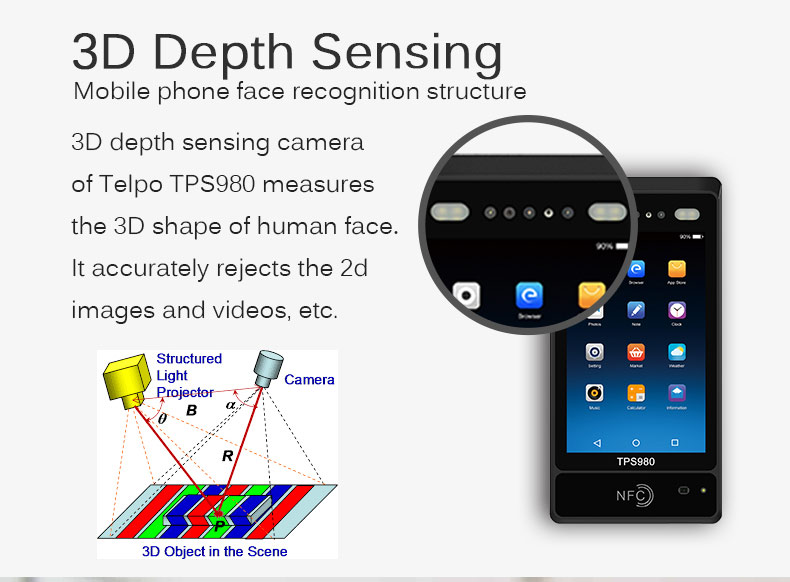

3D-depth Sensing Camera (Optional)

Cutting-edge 3D face recognition technology - structured light can be added. The 3D structured light built-in sensor and dot matrix projector can project more than 30,000 points to accurately identify the user's face.


8-inch IP54 Android Face Recognition Access Control Terminal


Fingerprint Scanner and NFC Reader (Optional)

Face recognition terminal TPS980 can be equipped with an NFC card reader and biometric fingerprint scanner function, which is more comprehensive with face verification.


8-inch IP54 Android Face Recognition Access Control Terminal

8-inch IP54 Android Face Recognition Access Control Terminal

8-inch IP54 Android Face Recognition Access Control Terminal

TPS980  8” IP54 Android Face Recognition Access Control Terminal


Applications

Access Control / Biometric Security / Employee Attendance Machine / School Attendance System / Time Card Machine

As Smart Facial Recognition system, TPS980 can be government biometric security control system, Employee Attendance Machine, School Attendance system, Time Card Machine, etc.

Telpo has the strong ability to independently design and development. We can accord with customers providing the more intelligent biometric terminals, such as voice recognition device, an iris scanner, fingerprint identification and so on. Welcome to consult us.


Specification

8-inch IP54 Android Face Recognition Access Control Terminal


Processor● Quad-Core   1.6GHz
○ Dual-Core 1.8GHz + Quad-Core 1.5GHz
Memory

●   2GB RAM, 8GB FLASH

○ 4GB RAM, 16GB FLASH

OSAndroid  5.1 or above
Display8",   TFT 1280*800
Keypad1   Reset key
SensorInfrared   sensor
Front Camera●   Single Camera, 2M Pixel, supports HDR
○ Dual Camera
○ 3D Structured Light
LED light2   Fill lights
Contactless card reader○  ISO14443 Type A/B, Mifare®, ISO18092 compliant


SIM   Slots1 SIM
Communications●   Ethernet/WiFi/Bluetooth
○ 4G/3G/2G
Peripheral PortsRS485,   micro USB
AudioDigital   audio speaker
Power SupplyInput:100-240VAC.   Output: 12V 2A
CertificationIP54
Holder○   Turnstile gate mounted
○ Wall mounted
MDM (Mobile Device Management)
CertificationCE,BIS
● Standard   ○ OptionalReserve the right to change the parameters without prior notice.
