10-Inch Android POS Billing Machine

TPS520 Product Description

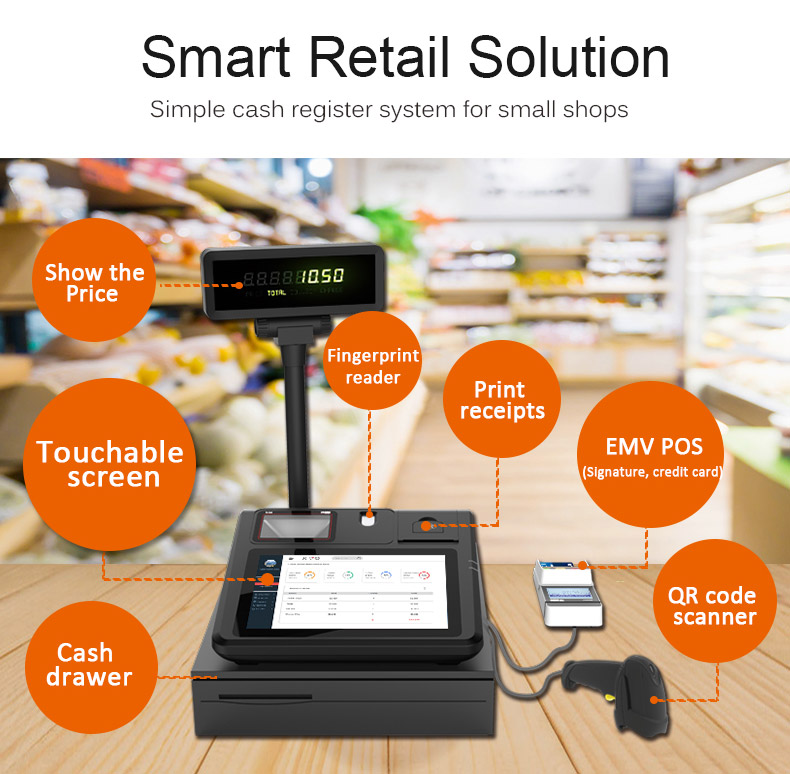

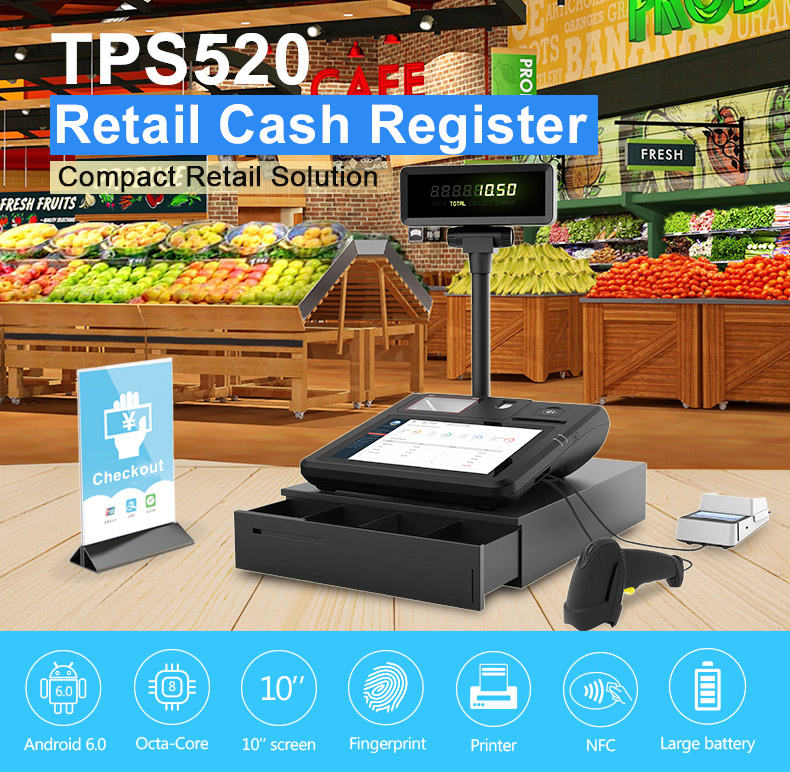

All-in-one Billing Machine TPS520 is an intact retail solution for the new retail industry.

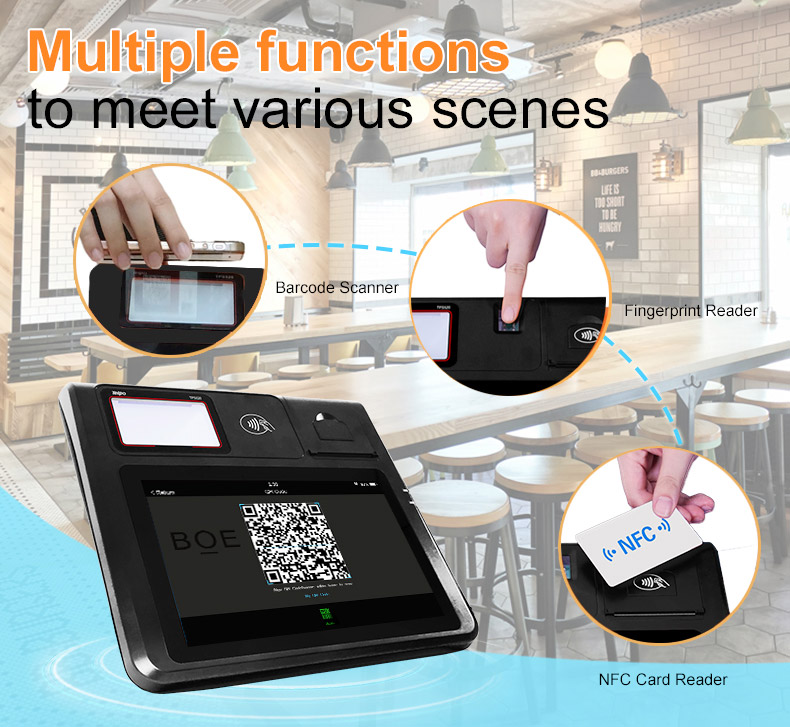

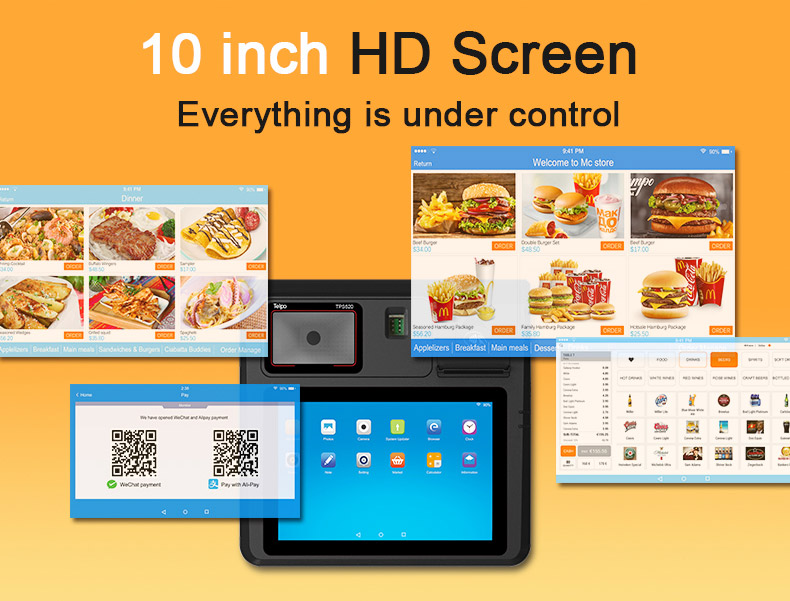

It adopts a new elegant and mellow design with a 10-inch big screen, containing NFC, printer, barcode scanner, fingerprint scanner functions.

Fully applicable to retail stores, lottery, cash register, biometric applications.

10-Inch Android POS Billing Machine

High Performance

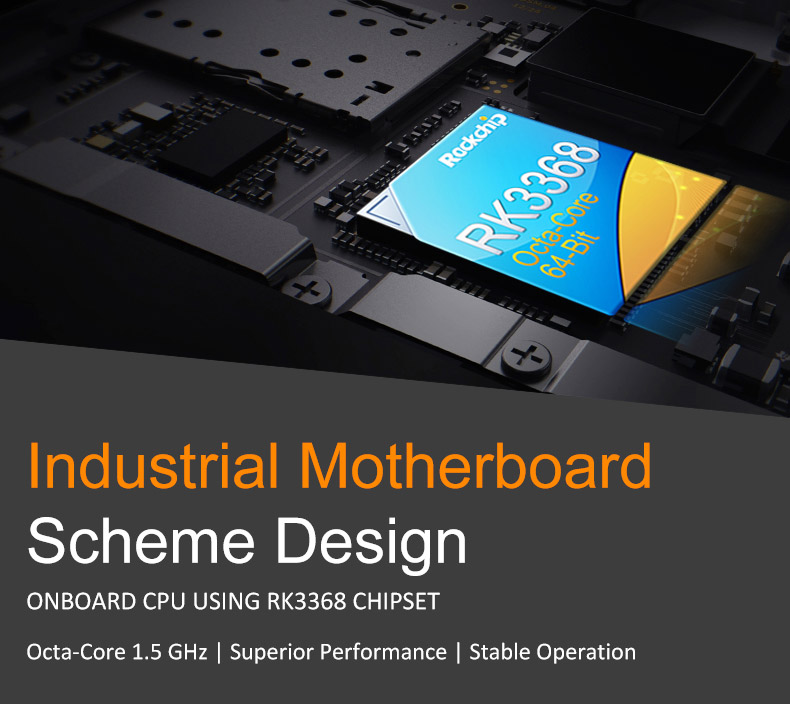

Based on Android 6.0 OS and RK3368 chip, its stable performance enables it to operate complicated software easily.

Retail Billing machine TPS520 provides a standard SDK interface for development.

10-Inch Android POS Billing Machine

Specification

Processor	Octa-Core 1.5GHz
Memory	1GB RAM, 8GB FLASH ,Ext. TF(micro SD) card slot
OS	Android 6.0
Display	10", TFT 1280*800
Keypad	1 power key
LED light	2

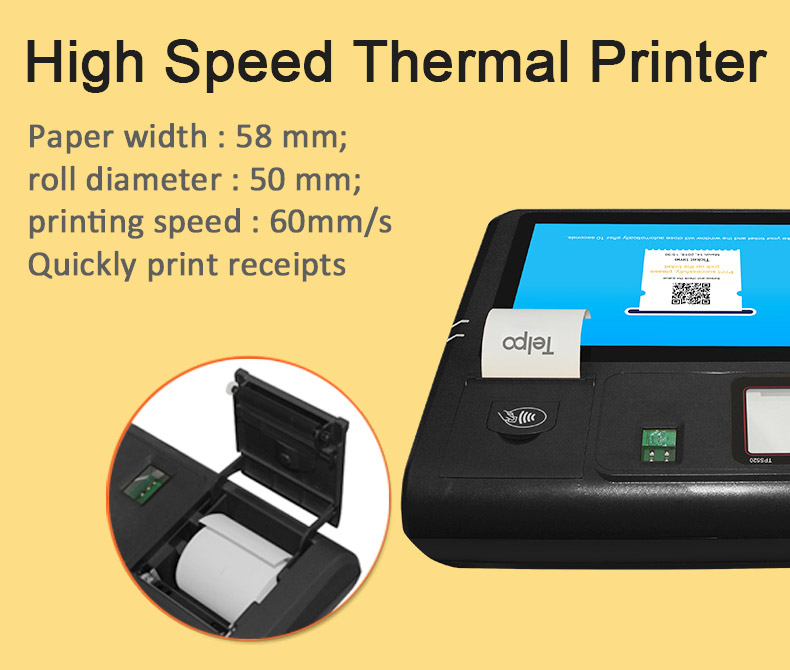

Thermal graphics printer	Paper width: 58mm; Φ50mm
Contactless card reader	○ ISO14443 Type A/B, ISO18092
Built-in Fingerprint Module	○ Support
Camera	○ 5M Pixel, fixed focus(Barcode soft-decoding)

SIM Slots	● 1 ○ 2
Communications	● GSM/WCDMA/Ethernet/WiFi/ Bluetooth ○ 4G/GPS
Peripheral Ports	● 4 USB Host, 1 micro USB, 1 RJ45 ○ 2 USB Host, 1 micro USB, 1 RJ45, 1 RJ11(Moneybox)
Audio	Digital audio speaker
Power Supply	Input:100-240VAC;output:9VDC, 2.5A
Battery	● 2500mAh, Li-on ○ 10000mAh, Li-on
Dimensions(mm)	284.529890.5mm
Certification	CE
MDM (Mobile Device Management)	○
● Standard ○ Optional	Reserve the right to change the parameters without prior notice.

Package and Delivery

10-Inch Android All-in-one Desktop Pos Terminal

Package Size(mm): 348 (L)x330(W)x133(H)

G.W.:1.98 KG
