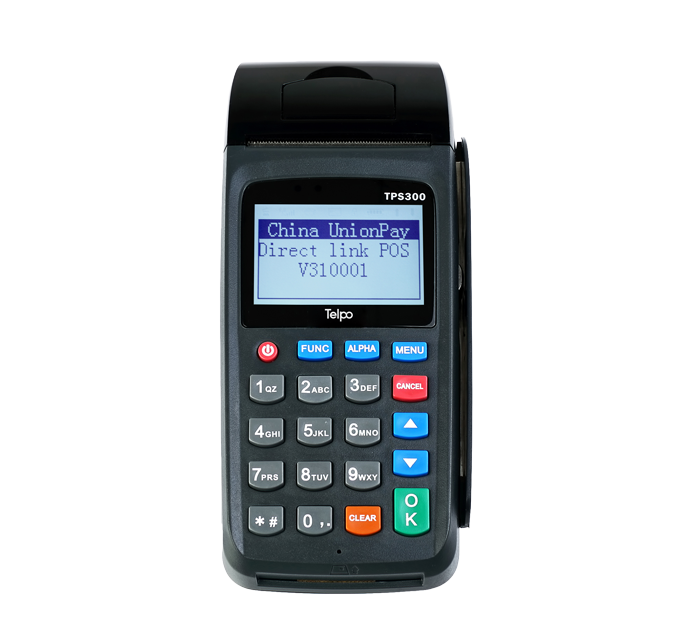

Handheld Linux EFT POS Machine


Handheld Linux EFT POS Machine

Handheld Linux EFT POS Machine

EFT POS TPS300A is EMV PCI PED approved, and advanced security including SSL. It's a great tool for paying.

Handheld Linux EFT POS Machine

Equipped with dual SIM Card is applicable to any network environment, ensured smooth business.

Handheld Linux EFT POS Machine

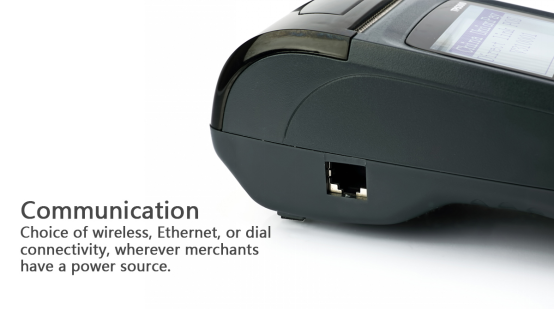

TPS300 has many communication choices of wireless, Ethernet, or dial connectivity, wherever merchants have a power source.

Handheld Linux EFT POS Machine

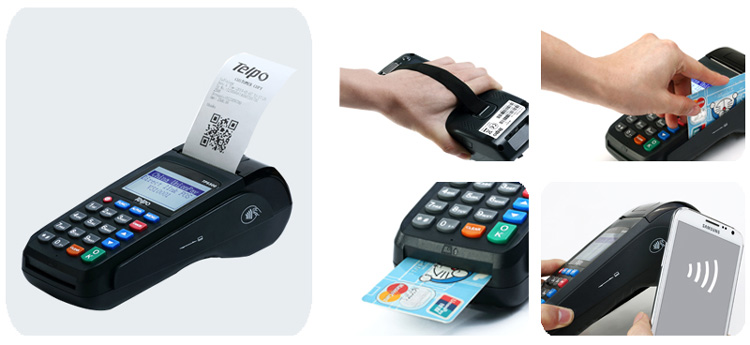

Portable POS TPS300 has a wrist strap in the back, which is extraordinary ease and convenience.

Handheld Linux EFT POS Machine

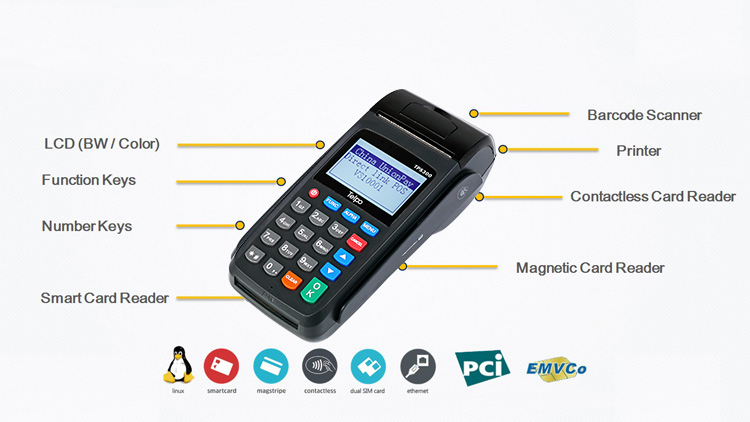

TPS300 is utilizing ARM11 processor technology, superior performance for faster transaction processing, including magnetic card, IC card and RFID card.

Handheld Linux EFT POS Machine


TPS300 can be applied for many scenarios, lists as followed:

•Credit / Debit card payment, VISA, Master Card, Union Pay

•Money Transfer / E-Wallet / Instant Mobile Remittance

•Bill Payment: Electricity /Gas / Insurance / Charity

•Prepaid Recharge: Mobile / TV /DTH / Internet / Fixed Line / Gift card / Game card

•Travel & Ticket: Hotel / Air Ticket / Railway / Subway / Taxi / Bus / Movie

• POS system with free SDK




Handheld Linux EFT POS Machine

Memory64MB RAM, 128MB FLASH

● 2.8", 128*64

Color, 320*240

Keypad11   alphanumeric keys, 8 function keys
Thermal graphics printer Paper width: 58mm;  Φ35mm
Magnetic card reader Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812
Smart card reader ISO 7816
Contactless card reader ISO14443 Type A, Mifare®
Barcode Scanner Built-in, 1D
SAM   Slots 2 SAM Slots, ISO7816
SIM Slots


2 SIMs

Communications GPRS/Ethernet  ○ WCDMA/Dial-up
Peripheral Ports

1 Mini USB(OTG), 1 Micro   USB(RS232), 1USB

 External antenna

AudioBuzzer single tone beeper
Power Supply

Input: 100-240VAC;

outputt:12VDC, 2A

BatteryLithium Polymer rechargeable battery, 7.4V/2200mAh
CertificationEMV 4.2 L1/L2, PCI 3.0, CE
Standard   OptionalReserve the right to change the parameters without prior notice.
