Smart bus validator

TPS530

Smart bus validator

Smart Bus Ticketing Machine

Telpo TPS530 is a smart android based bus validator for the bus fare collection. Telpo TPS530 is a new type of bus fare collection terminal that is stylish, durable and practical.


Smart Bus Ticketing Machine


Sturdy Body


Its black body shell is sturdy and wear-resistant, making it easy to adapt to special conditions.


Smart Bus Ticketing Machine



Android OS

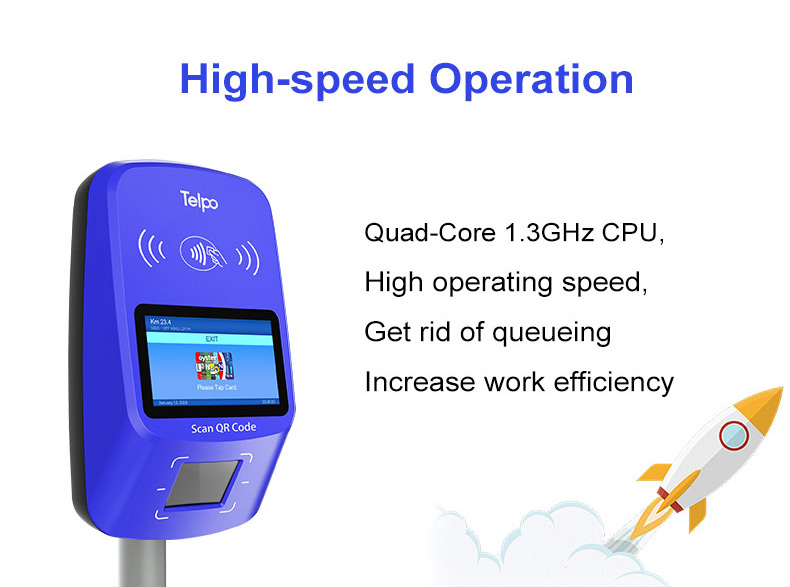

Bus fare collection terminal TPS530 has good performance. A7, quad-core processor, Android 7.0 system is easy to develop, easily running a variety of programs. 1G RAM+8G ROM is large enough for ticketing record.


Smart Bus Ticketing Machine


5-inch Touch Capacitive Screen


Easy to enlarge and shrink the 5-inch touchable capacitive screen. All the operations easily control for the drivers. Conductors can check recent ticketing records in time to avoid missing tickets. The display can clearly show the balance of the cards.


Smart Bus Ticketing Machine

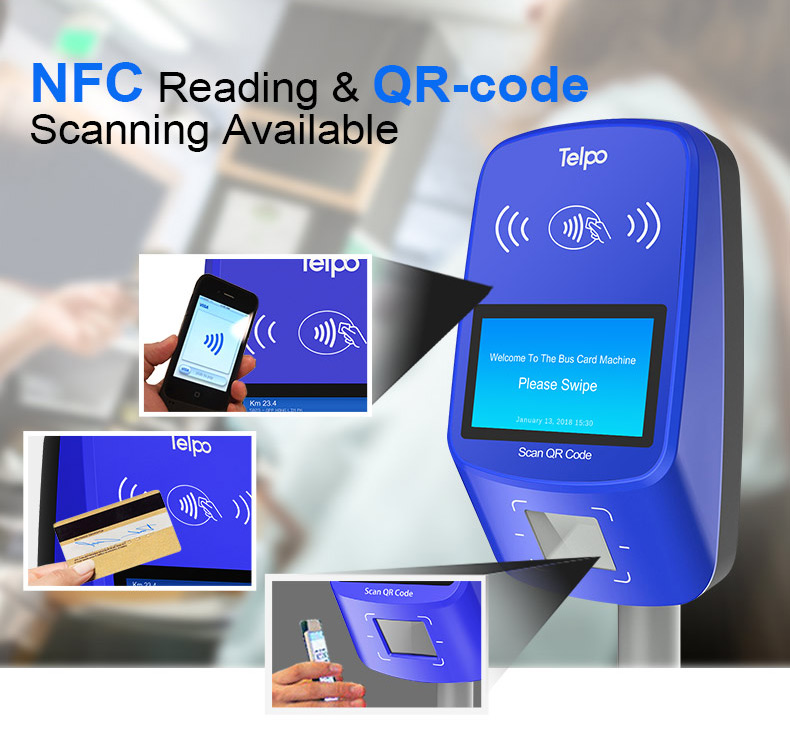

NFC Reader

Its contactless card reader supports the identification of public transit cards or payments by e-wallet or smartwatches.


Qr-code Scanner


The curved shape of the TPS530 allows the passenger to easily identify the QR code of the mobile phone as the passages can clearly position the QR-codes and the camera. Benefit for a fixed focus decoding camera is that it can be successfully recognized in seconds.


Voice prompts to alert drivers and passengers to charges. The language for voice prompts can be customized.



Smart Bus Ticketing Machine


All Connectivity

Telpo ETM TPS530  bus validator has full network communication, such as 4G, 3G, WIFI, and GPS. The GPS which enables the owner of the bus to know where the bus is at any moment and how many tickets were issued. Telpo TPS530's GPS test score is high.


Customization Service


Telpo ETM TPS530 bus validator met the requirements of customization service, long term support, performance, low power, expansibility, and compact-size given by the customer.


Smart Bus Ticketing Machine



1. Bus, Taxi, Metro, Highway, supermarkets, gas station, unmanned retail store, theater and so on fast payments fields;

2. Government, Institution, Company, Factory, School, Hospital, Hotel;

3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system, School shuttle bus payment system


Advantages:


1. Made of industrial grade material, fully adapt to special circumstances on bus

2. dustproof, waterproof, shockproof and anti-electromagnetic interference

3. Android OS, easy to use and development, with the high-definition LCD display

4. WIFI Communication + USB data acquisition, support remote upgrading to the main system

5. Contactless smart card read and write, light display for reading card

6. Live voice prompts, supports customize voice prompts in different languages: such as "student card",      "employee card",

7. Dedicated stable power supply, voltage overload protection

8. Optional GPS positioning module, for global positioning and data transmission;

9. Great stability of data storage, data kept as long as 10 years even with the power outage

10. Can check the nearest ticketing records, to prevent ticket payment dispute.


Specification

OSAndroid 7.0 or aboveCommunicationsWCDMA/GPRS/WIFI/Bluetooth
LTE (Optional)
ProcessorQuad-Core 1.1GHz or aboveGPS (Optional)Built-in
Memory1GB DDR, 8GB eMMC
2GB DDR, 16GB eMMC (Optional)
Built-in 1D/2D Barcode ReaderSoft Decoding
Hard Decoding(Optional)
Display5-inch, 1280*720EnvironmentalOperating temperature:  -20 ~ 50℃
Storage temperature: -25
~ 60
Contactless   Card ReaderISO14443 Type A/B, Mifare,   ISO18092 compliant
EMV Contactless L1, Paywave, Paypass (Optional)
MDM (Optional)Mobile Device Management
Peripheral   Ports1 SIM, 2 SAMs, 1 RS232, 1 RS485,   1 USB-A
2 SIMs, up to 8 SAMs (Optional)
CertificationCE
